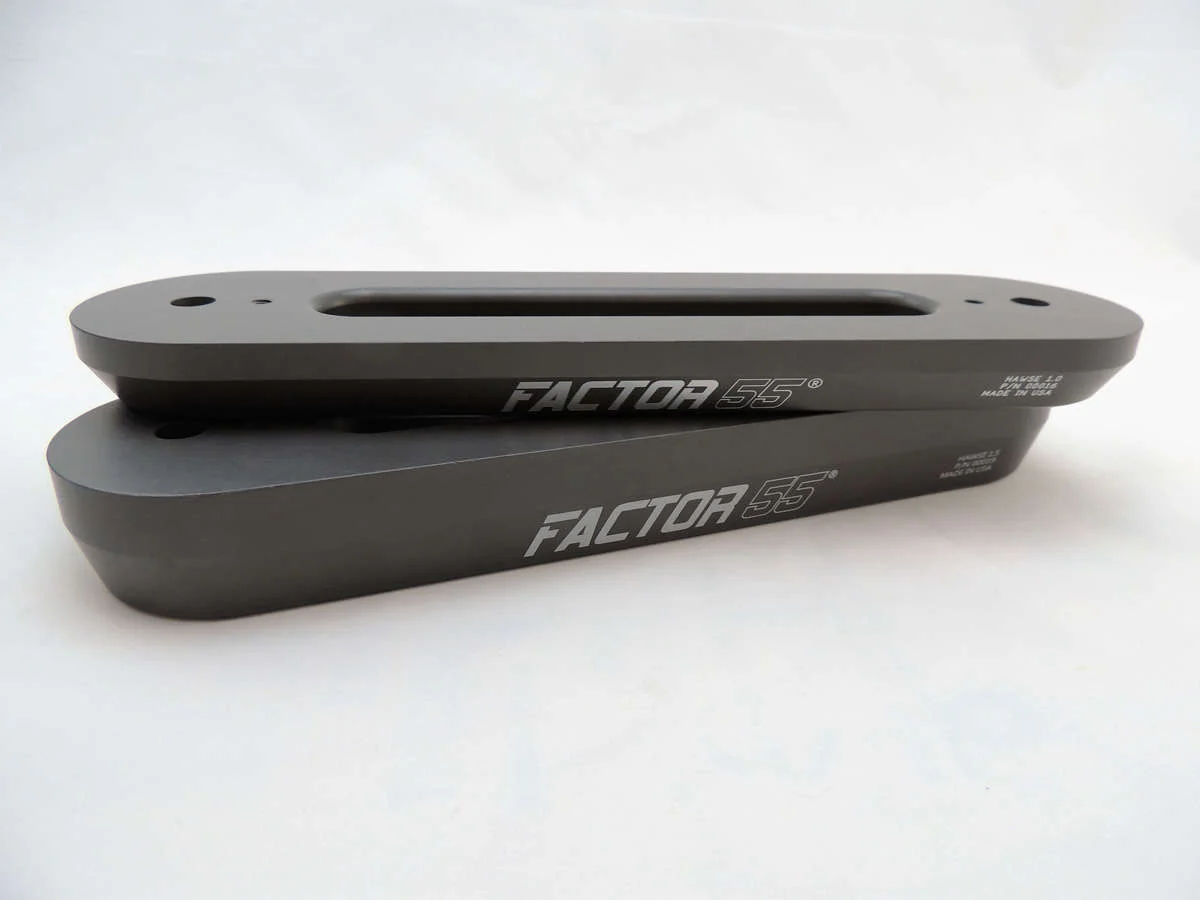

Factor 55 00016 Hawse Fairlead Slim 1 in. Thick- For Truck/Jeep Applications, Anodized Gray

Hawse Fairlead 1.0

The 1.0 Hawse Fairlead is machined from 1 inch thick 6000 series aluminum. This results in large outer fillet radius for the synthetic rope to slide against. The rope slot height opening is taller to allow the larger 1/2 in. tube thimbles to pass.

Specifications

• 12.35 in. x 3.25 in.
• Standard 10 in. Bolt Mount Spacing
• The 1.0 and 1.5 fairleads are CNC machined from 1 and 1.5 inch thick USA 6000 series aluminum bar. The industry'standard fairlead thickness is .75 inches thick.
• The 1.0 and 1.5 fairleads are the industry's first Hawse fairleads compatible with larger 1/2 inch diameter rope tube thimbles.
• The rope slot height opening is taller to allow the larger 1/2 in. tube thimbles to pass through. There is also a machined outer corner chamfer to reduce rope stress for those than plan on using the winch as a front suspension suck down device.
• Made in the USA
• Limited 1 Year Warranty
